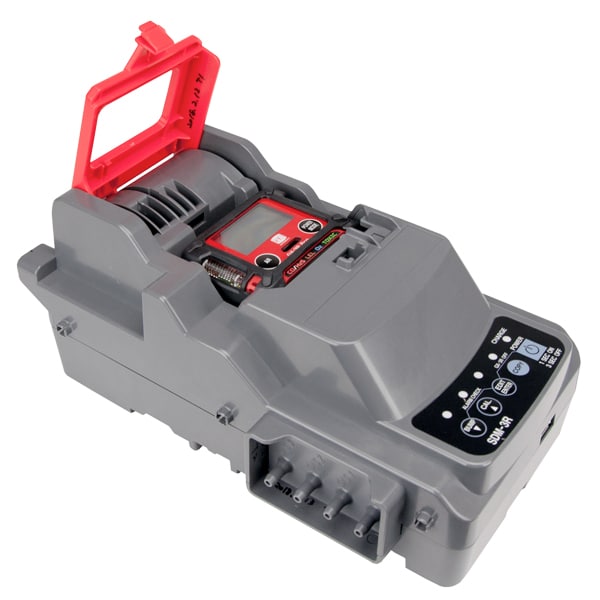

SDM-3R Calibration Station

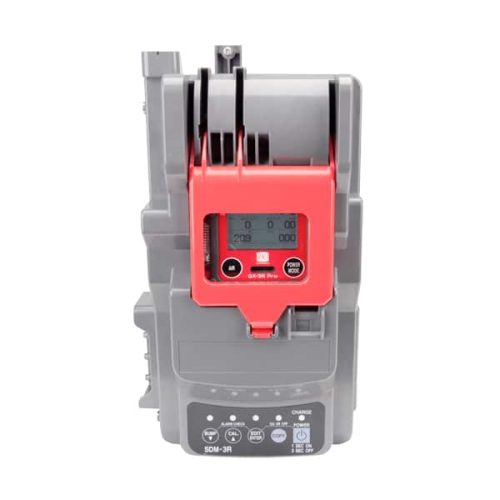

  • SDM-3R Calibration Station Front View
  • SDM-3R Calibration Station
  • SDM-3R Calibration Station Front View
  • SDM-3R Calibration Station

Each SDM-3R includes 1 solenoid valves, filter, AC adapter, USB-C connection cable, exhaust tube, flash drive, USB-LAN cables. Ships directly from the manufacturer, please expect 2-3 weeks for shipping.

For special pricing, please call AFC International at 1-800-952-3293, 219-987-6825 or email [email protected].

Price range: $1,362.00 through $1,660.00

SKU N/A Categories , Tags , , ,

Description

Description

Stand Alone Use
The SDM-3R Calibration Station is a versatile maintenance tool that automates the service of a GX-3R (Pro) portable gas monitor. This docking station can be used as a stand alone device for charging, calibration and bump testing, with all records stored automatically for future upload to a PC via USB flash drive (PC software and flash drive included).

PC-Controlled Use
Automate how you manage and service GX-3R (Pro) instruments by connecting the SDM-3R to a computer with a USB cable. With the SDM-3R Calibration Station controller software, you can simultaneously calibrate, bump test, alarm check, archive data, or charge up to ten instruments. You can also download the datalogging history from each instrument into one easy to manage location. SDM-3R stations can be manifolded together to reduce the number of demand flow regulators gas cylinders required.



Additional information

Weight 5 lbs
SDM-3R Docking Station

SDM-3R with 1 Solenoid Valve, SDM-3R with 1 Solenoid Valve & Demand Flow Regulator

Features

Stand Alone Use (no PC required)

  • Compatible with both GX-3R and GX-3R Pro
  • Automatically charge, bump test, and/or calibrate
  • Auto on/off of gas detector
  • 3 separate gas inputs
  • Multiple modules (10 max) can use one set of calibration equipment
  • Save Bump Test, Calibration, and Alarm Check records to USB flash drive, computer, or network
  • Includes PC software for viewing/archiving bump test, calibration records, and event data

PC-Controlled Use

  • Multiple modules connected to a PC (10 max)
  • Automatic calibration/bump test option
  • Configure GX-3R (Pro) parameters
  • Archive Bump Test, Calibration, and Alarm Check
  • Archive data to network location
  • Software controlled data retrieval
  • Windows 7, 8, and 10 compatible

Specifications

Input Power AC Adapter with 100 – 240 VAC, 47-63 Hz, 0.4A input and 5.99 VDC, 2A output provided as standard
Operating Temperature 0-40°C
Gas Regulator Demand flow regulator, 0 – 1,000 psig
Memory Capacity Stand Alone: 200 calibrations, or 214 bump test, or 469 alarm check recordsPC program Controlled: Unlimited records
Cradles Supported Up to 10 cradles total, any mix
Number of Ports 3 Calibration gas, 1 fresh air and 1 exhaust

Downloads

SDM-3R Docking Station Datasheet
