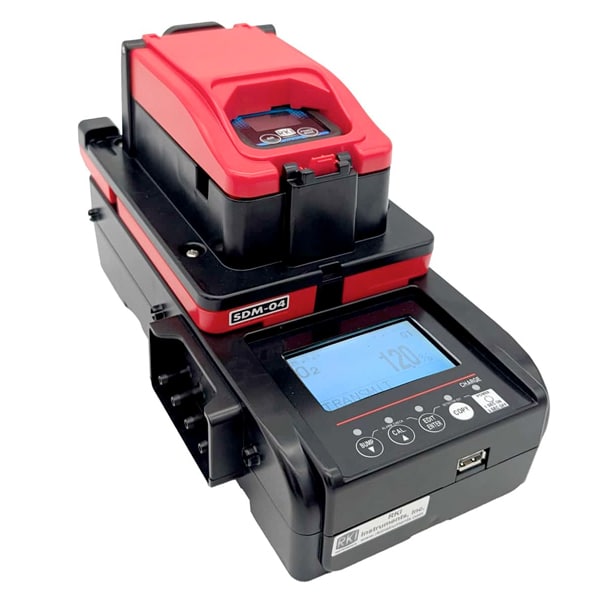

SDM-04 Calibration Station

  • SDM-04 Calibration Station
  • SDM-04 Calibration Station
  • SDM-04 Calibration Station
  • SDM-04 Calibration Station

Each SDM-04 includes 1 solenoid valves, filter, AC adapter, USB-C connection cable, exhaust tube, flash drive, USB-LAN cables. Ships directly from the manufacturer, please expect 2-3 weeks for shipping.

For special pricing, please call AFC International at 1-800-952-3293, 219-987-6825 or email [email protected].

Price range: $1,675.00 through $1,969.00

SKU N/A Categories , Tags , , ,

Description

Description

Stand Alone Station

The SDM-04 Calibration Station is a versatile maintenance tool that automates the service of a 04 Series portable gas monitor. This docking station can be used as a stand alone device for calibrating and bump testing, with all records stored automatically for future upload to a PC via USB flash drive (PC software and flash drive included).

PC-Controlled System

The SDM-04 Calibration Station can also be connected to a PC for automated calibration, bump testing, and archiving of datalog data from 04 Series instruments. Up to ten SDM-04 stations can be connected simultaneously using USB cables and the SDM-04 includes connections for one to three calibration gas cylinders.



Additional information

Weight 5 lbs
SDM-04 Docking Station

SDM-04 with 1 Solenoid Valve, SDM-04 with 1 Solenoid Valve & Demand Flow Regulator

Features

Stand Alone Station

  • Calibration
  • Bump Test

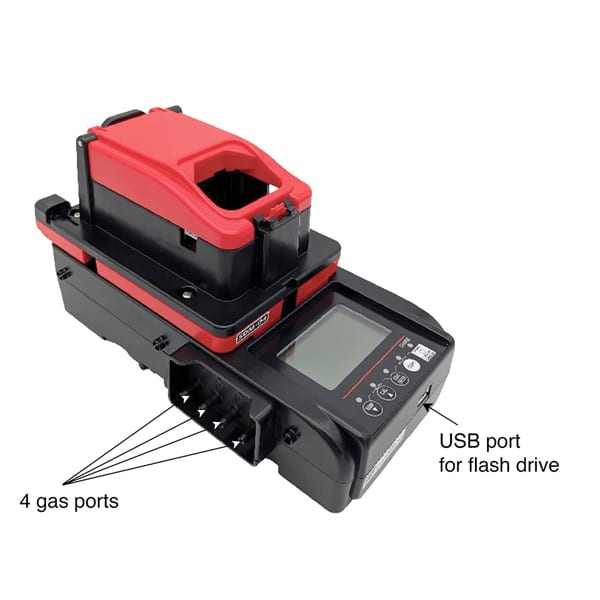

  • 4 Calibration gas ports
  • Save Bump Test and Calibration records
  • Bump Test and Calibration records copy to USB Jump Drive
  • Includes PC software for viewing/archiving bump test and calibration records

Multi Module System

  • Multiple modules connected to a PC (10 max)
  • Calibration, Bump Test
  • Configure 04 Series
  • 4 Calibration gas ports

Specifications

Input Power Main unit input: 5.2 VDC
Accessory AC adapter input: 100-240 VAC
Operating Temperature 0-40°C
Gas Regulator Demand flow regulator, 0 – 1,000 psig
Memory Capacity Up to 500 bump tests, calibrations, or alarm checks
Cradles Supported Up to 10 cradles total, any mix
Number of Ports Up to three calibration gas cylinders

Downloads

SDM-04 Docking Station Datasheet
