SDM-6000 Calibration Station

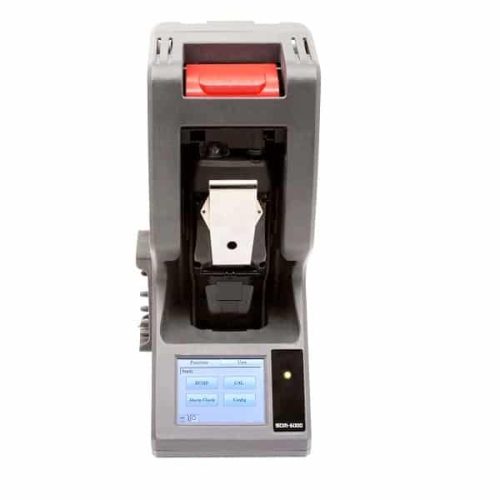

  • SDM-6000 Calibration Station

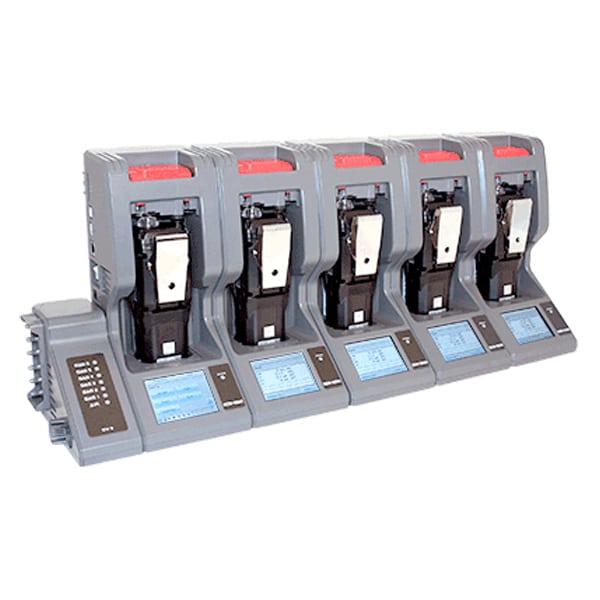

  • Multi SDM-6000 Calibration stations
  • SDM-6000 Calibration Station
  • Multi SDM-6000 Calibration stations

Each SDM-6000 basic station includes filter, connection brackets, and 10′ exhaust tubing. Each SDM-6000 complete calibration station includes filter, connection brackets, 10′ exhaust tubing, USB cable, SD card, US SD card reader, ethernet cable, AC adapter, demand flow regulator and tubing. Ships from the manufacturer, please allow 2-3 weeks for delivery.

For special pricing, please call AFC International at 1-800-952-3293, 219-987-6825 or email [email protected].

Price range: $2,095.00 through $2,495.00

SKU N/A Categories , Tags , , ,

Description

Description

The SDM-6000 Calibration Station is a versatile maintenance tool that automates the service of a GX-6000 portable gas monitor. This docking station can be used as a stand alone device for charging, calibration and bump testing, with all records stored automatically for future upload to a PC via SD card (PC software and SD card included).

Modular Design
SDM-6000 calibration stations are modular by design and can easily connect to each other without the need of any tubes or cables. One power source and one set of calibration equipment can provide service for up to 10 SDM-6000 calibration stations.

Up to 10 calibration stations can also be connected to one PC for automated charging, calibration, bump testing and archiving of data. Even if instruments are turned off, automated routines will power up the instruments and run as scheduled. All data collected from the PC Controlled software can also be centralized in one network location accessible by anyone with the PC Controlled software with access to the network location.



Additional information

Weight 5 lbs
SDM-6000 Docking Station

SDM-6000 Basic, SDM-6000 Complete

Features

Stand Alone Station

  • Stand-alone station (no PC Required)
  • Charge, calibrate, bump test, and alarm test
  • Included software collects calibration, bump test, alarm history, and exposure date from instruments
  • Automatically power instruments on / off for scheduled calibration
  • Accepts GX-6000 with or without rubber boot

Specifications

Display Touch panel TFT liquid crystal (3.5 inch, 320×240 image element QVGA, RGB1677 million colors) Back light
LED 3 color [Green, Red, Orange]. Each status is indicated by Lighting / Blinking
Bump Test Standard Settings
AIR Flush time: 15sec, GAS time: 20sec, AIR Purge time: 5sec
Threshold value: ±50%, Auto Calibration: OFF, Auto alarm function check: ON
Auto print: OFF
Setting range
AIR Flush time: 15~120sec
GAS time: 20~120sec
AIR Purge time: 5~120sec
Threshold value: ±10~50%
Auto calibration: ON, OFF
Auto alarm function check: ON, OFF
Auto print: ON, OFF
Bump test result: Displayed on TFT liquid crystal
Calibration Standard setting values
AIR Flush time: 30sec
GAS time: 90sec
AIR Purge time: 30sec
Auto alarm function check: ON, Auto print: OFF
Setting ranges
AIR Flush time: 15~120sec
GAS time: 20~120sec
AIR Purge time: 5~120sec
Auto alarm function check: ON, OFF
Auto print: ON, OFF
Calibration result: Displayed on touch screen display
Power 100~240VAC~50/60Hz
Inlet 4 inlets: 3 cylinders, plus fresh air
